Standard Specifications

• From 36’ to 58’ Wide
• From 20’ to any length
• Center Structure sides heights from 6’ to 13’
• 14-gauge steel framing
• 29-gauge metal roof panels
• Full bracing (1 per post) on center of structure
• Full bracing on lean-to sides if 8’ or taller (unless gabled or closed ends)
• Gables
• Horizontal panel orientation only
• Certification is automatic if installed on ground , concrete or asphalt

Roof Styles:

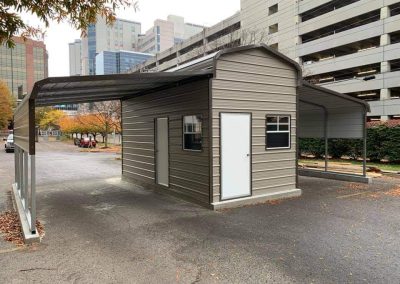

Regular Roof (GOOD)

• Most Economical
• No hat channel, ridge caps or eave trim
• More clearance versus identical, box eave or vertical

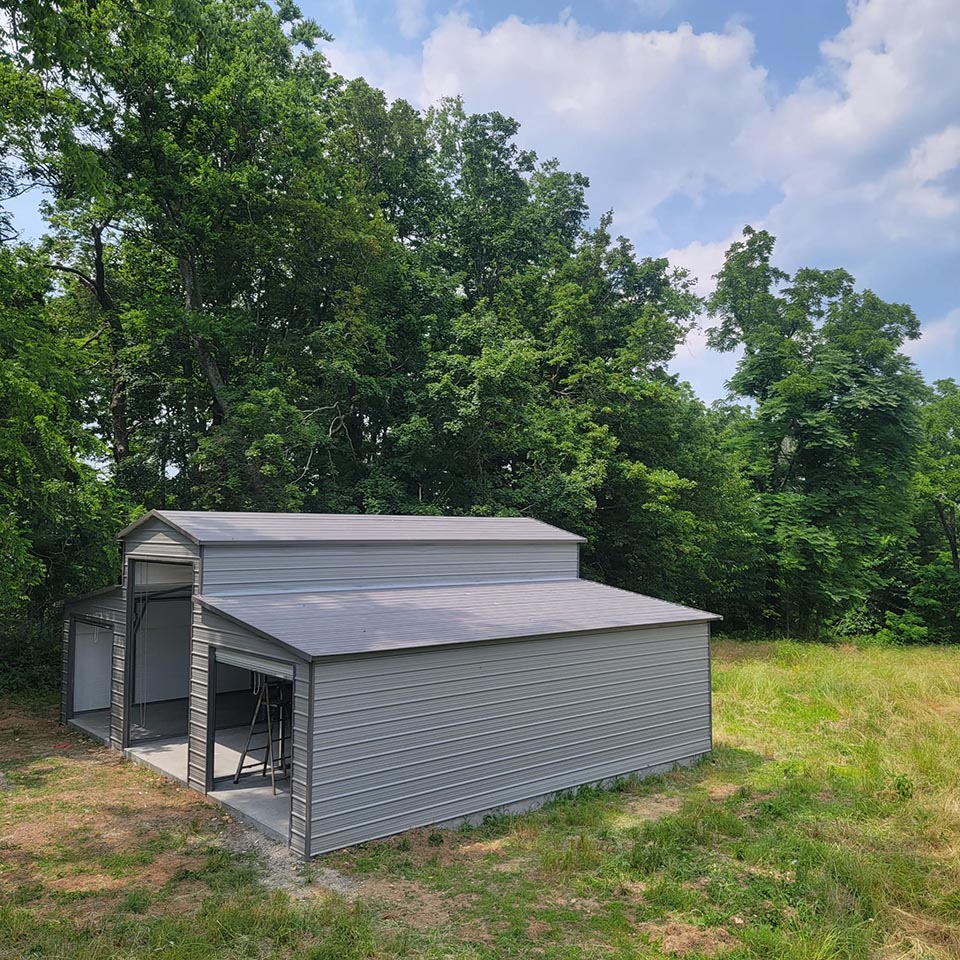

Boxed Eave (BETTER)

• More AƯordable
• No hat channel or ridge cap
• Underneath eave sides of roof bow/truss are covered with trim for a finished appearance.

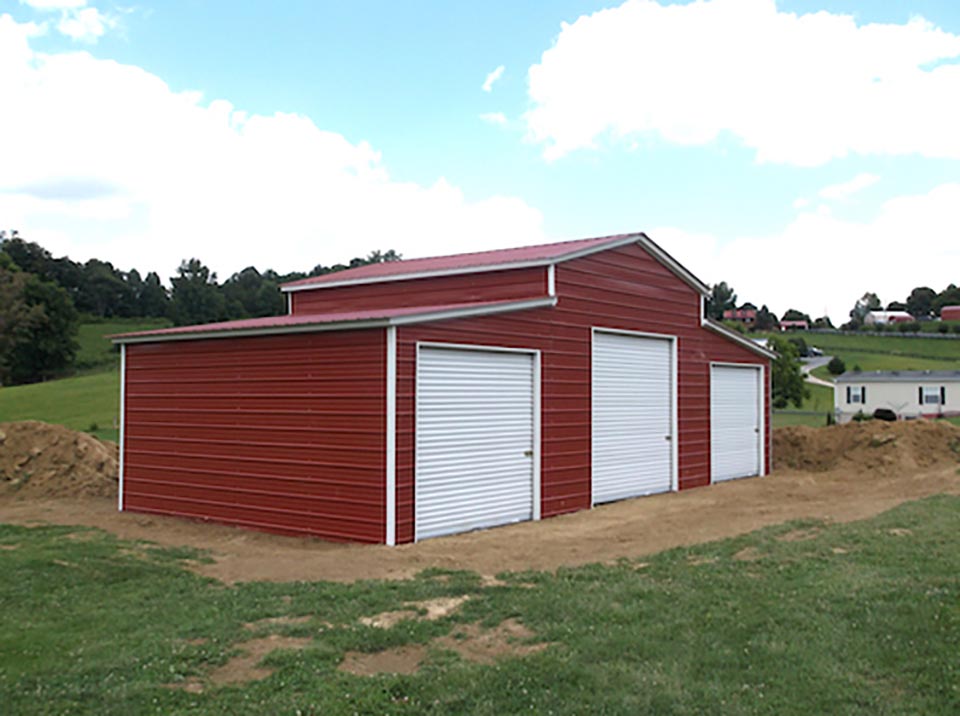

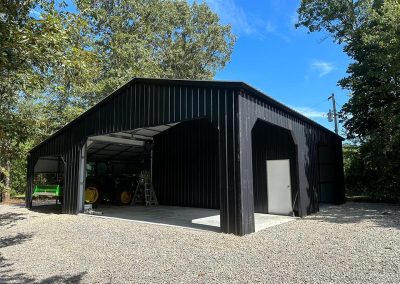

Vertical Roof (BEST)

• Allows rain and snow to run oƯ eave side
• Steel panels are installed vertically
• Includes vertical room trim on sides and ends and hat channel to support vertical panels, adding
  rigidity.

Barn Material Upgrades & Options/Add ons

• 12-gauge framing
• 26-gauge framing
• Enclosed Sides and/or ends
• Garage doors , walk-in doors , windows and frame outs
• Premium Colors (extended warranty)
• Color Matching Screws
• J-trim
• Insulation Options
• And more
